Spout Pouch Filling & Capping Machine

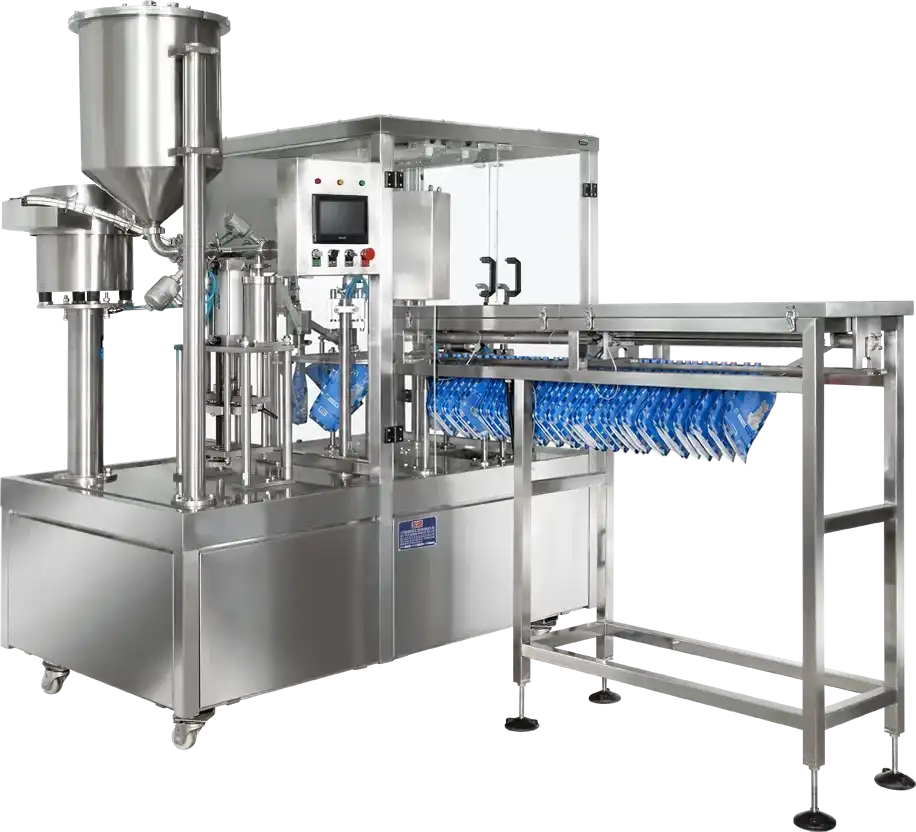

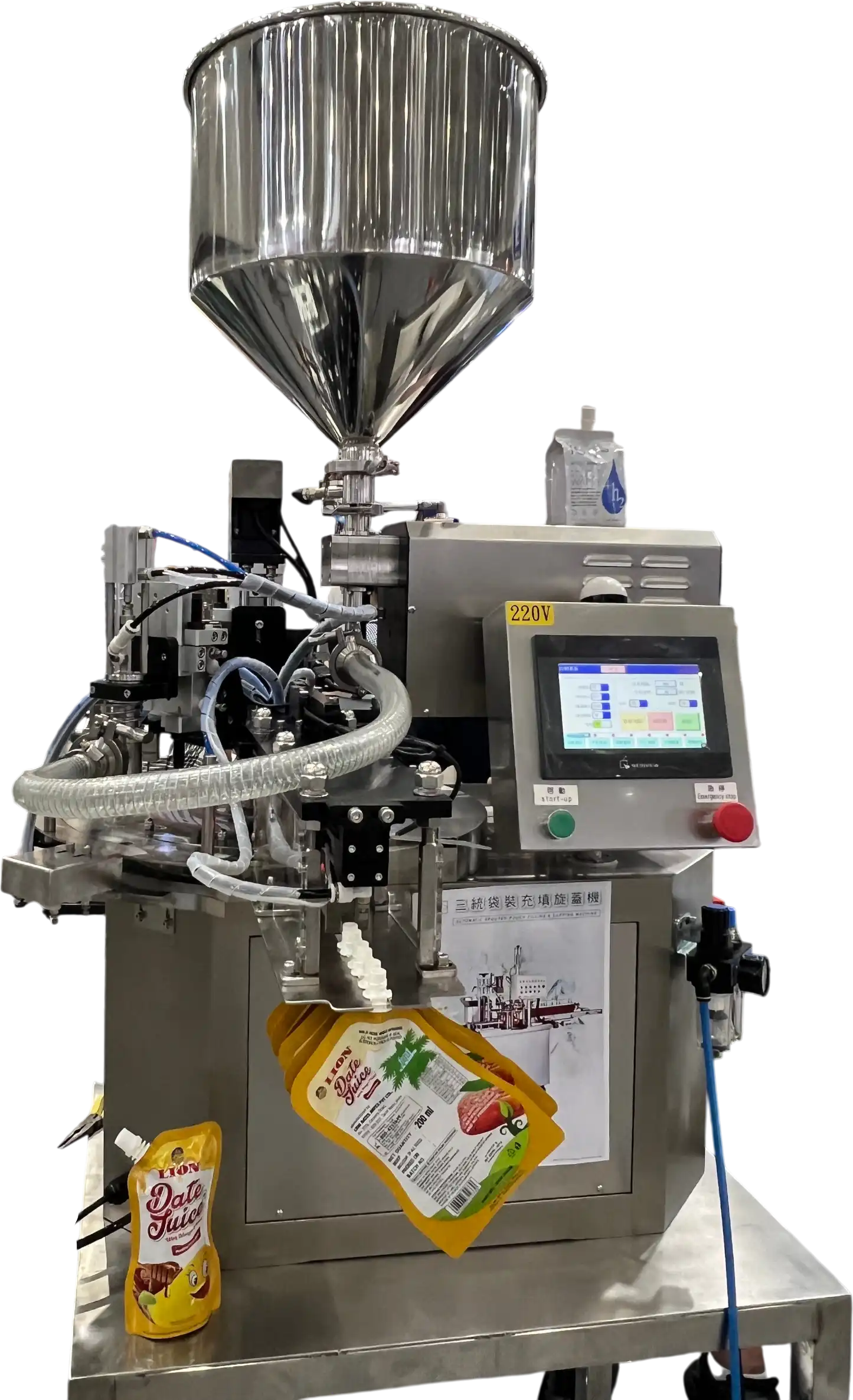

AGC-1 Spout Pouch Filling & Capping Machine

AGC-1 / AGC-2 / AGC-3 / AGC-4 / AGC-6 / AGC-H

ADVANTAGES

The Spout Pouch Filling and Capping Machine is specifically engineered for high-precision filling and capping of food, cosmetics, daily cleaning products, biotechnology, and refill pouches. This packaging solution offers exceptional portability and space-saving storage, eliminating the need for bulky bottles while aligning with eco-friendly waste reduction concepts. Fully automated from bag loading and filling to cap feeding and torque capping, the machine also features a built-in CIP (Clean-In-Place) automatic cleaning system to ensure a faster, more stable, and hygienic production process. Whether for SMEs or large-scale production lines, this equipment delivers efficiency, precision, and significant cost savings. Enhance your production speed and guarantee packaging quality with our user-friendly technology. Boost your market competitiveness today—contact us now for more technical details!

Option: Inkjet Date Coder, Sterilization Equipment, Nitrogen Flushing Device (Nitrogen generator must be provided by the customer)

FEATURES

  • High-Efficiency Filling: Precise dosing ensures the accuracy of packaging contents while significantly increasing production output.
  • Secure Capping: A high-stability capping system ensures perfect sealing integrity to prevent any liquid leakage.
  • Automated Operation: Fully automated design with an intuitive interface reduces operational complexity and shortens training time for staff.
  • Multi-Functional Compatibility: Supports standard spout pouch specifications available on the market, providing flexibility for diverse packaging needs.
  • Easy Maintenance & Hygiene: Constructed from SUS304 stainless steel and equipped with a CIP cleaning system, ensuring easy sanitation and stable operation with reduced downtime.
  • Space-Saving Design: Customizable configurations to minimize footprint, making it suitable for various production environments.

APPLICATIONS

  • Food & Beverages: Fruit juice, soy milk, jelly, health drinks, pet food, jam, honey, soy sauce, vinaigrette, syrup, yogurt, functional drinks, mineral water, seasoning sauces, oils, mayonnaise, bean paste, miso, vinegar, squeezable jelly, dressings, alcohol.
  • Daily & Beauty Products: Shampoo, cleaning supplies, toner, lotion, facial cleanser, beauty products, etc.
  • Biotechnology & Pharmaceuticals: Collagen drinks, liquid supplements, nutritional supplement pouches, etc.
  • Other liquid packaging requirements, etc.

SPECIFICATIONS

Model Spec.
AGC-1 AGC-2 AGC-4 AGC-H
Filling Range 100-500 c.c. 1000-2000 c.c.
Packaging Speed (bags/min) 10-15 30-40 70-80 10-15
Electric Power AC 220V-AC380V 3phase
Machine Dimensions
L × W × H (mm)
1510 × 1220 × 1980 2500 × 2000 × 2200 3800 × 2600 × 2500 2500 × 2000 × 2200
