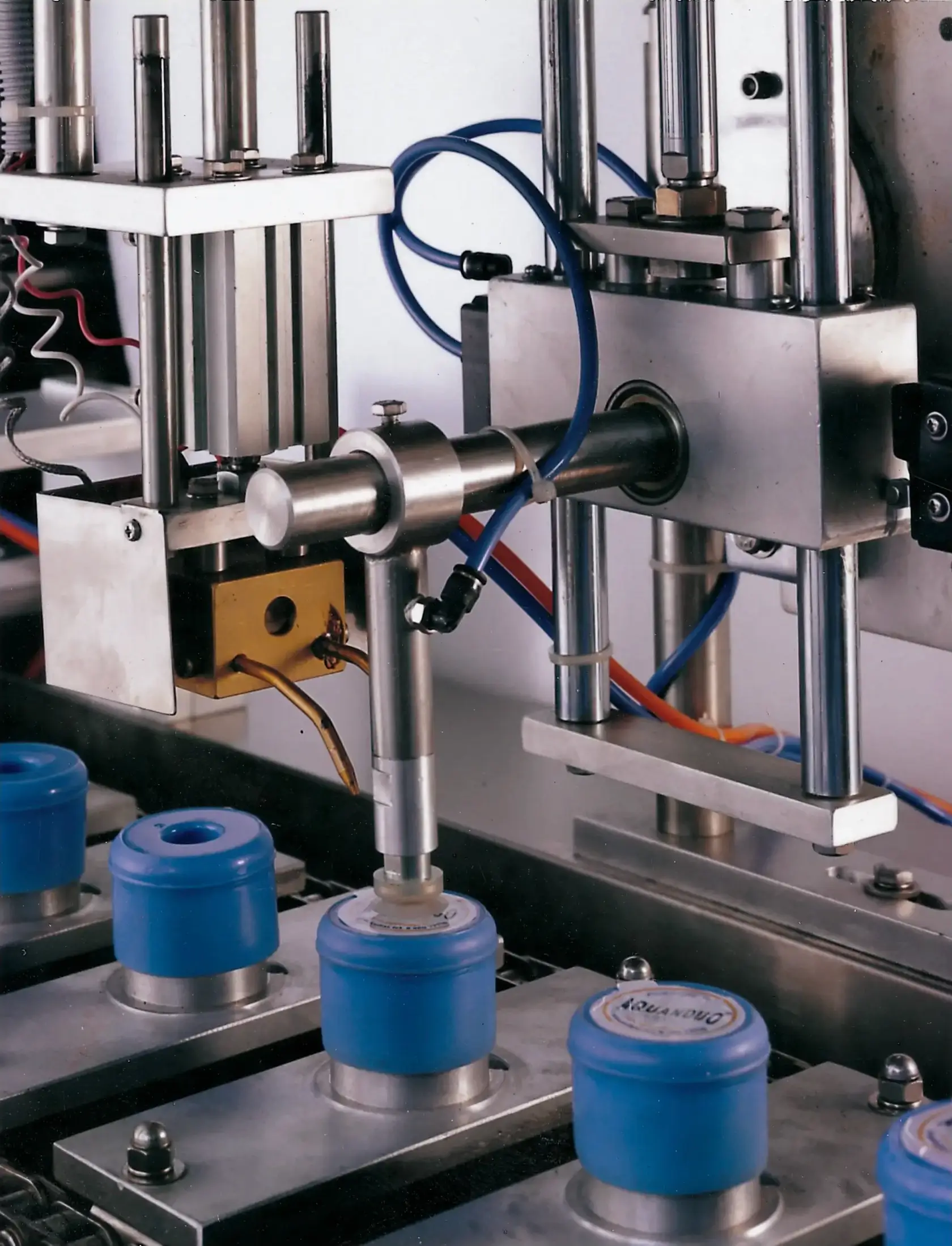

Specifically developed for 5 Gallon Water Cap, large container lids, and contact lenses, the GST series is essential for the beverage, food, and optical industries. The process—including automatic cap feeding, film cutting, heat sealing, discharging, and UV sterilization—ensures an airtight finish to prevent leaks and maintain hygiene. It streamlines production with automated, high-speed operation, replacing manual labor to reduce costs and increase output. Its adjustable design accommodates various lid sizes, ensuring a high-quality production line that builds brand trust and market presence.
Products Menu
- AST Cup / Tray Filling & Sealing Machine
- BST Continuous Tray Bean Curd Filling & Sealing Machine
- CST Cup Filling & Sealing Machine
- FST Cup / Tray Filling & Sealing Machine (Pre-cut Foil Sealing)
- RSM Rotary Cup Filling & Sealing Machine (Roll Film Type)
- RDM Rotary Cup Filling & Sealing Machine (Pre-cut Lid Type)
- ST Semi-auto Square Tray Sealing Machine
- AICF Automatic Ice Cream Filling & Sealing Machine
Cap / Contact Lens Sealing Machine
GST 5 Gallon Cap Sealing Machine
GST-1 / GST-2 / GST-4
ADVANTAGES
FEATURES
-
Powerful Sealing Effect：
Ensures a perfect seal between the cap and film to prevent leakage or contamination. Suitable for food, water, and chemical containers, guaranteeing product integrity and safety. -
Automated Production：
A fully automated system—from cap dropping and film cutting to sealing, discharging, and UV sterilization—optimizing production speed and reducing labor costs for high-capacity environments. -
Compatible with 5-Gallon & Various Sizes：
Specifically designed for 5 Gallon Water Cap, with customizable options for different cap dimensions to provide maximum flexibility. -
High-Speed Sealing：
The high-speed design completes each sealing cycle in a short timeframe, significantly boosting overall production line efficiency for high-demand operations. -
Adjustable Sealing Pressure：
Allows precise adjustment of sealing pressure and temperature based on cap material, ensuring the most optimal and secure seal. -
Robust & Durable Construction：
Built with premium materials like stainless steel and durable alloys. Corrosion-resistant and wear-resistant, it withstands long-term, high-frequency industrial use. -
Simple & Easy to Use：
Features an intuitive operation process with no complex setups required. Start the machine to complete the sealing process, suitable for all operators. -
Energy-Efficient Design：
Utilizes modern energy-saving systems to minimize power consumption during long-term operation, improving efficiency while lowering overhead. -
Safety Protection Features：
Equipped with multiple safety safeguards, including overload protection, overheat protection, and fault alerts to ensure personnel and equipment safety. -
Versatile Sealing Technology：
Supports various methods such as heat sealing, cold sealing, and pressure sealing, adaptable to different cap types and container requirements. -
Enhanced Quality & Brand Image：
Precision sealing enhances product aesthetics and integrity, elevating the brand image and ensuring consumer safety upon use. -
Low Maintenance Requirements：
Designed with a simple control panel and durable materials to minimize routine maintenance, reducing downtime and operational costs.
APPLICATIONS

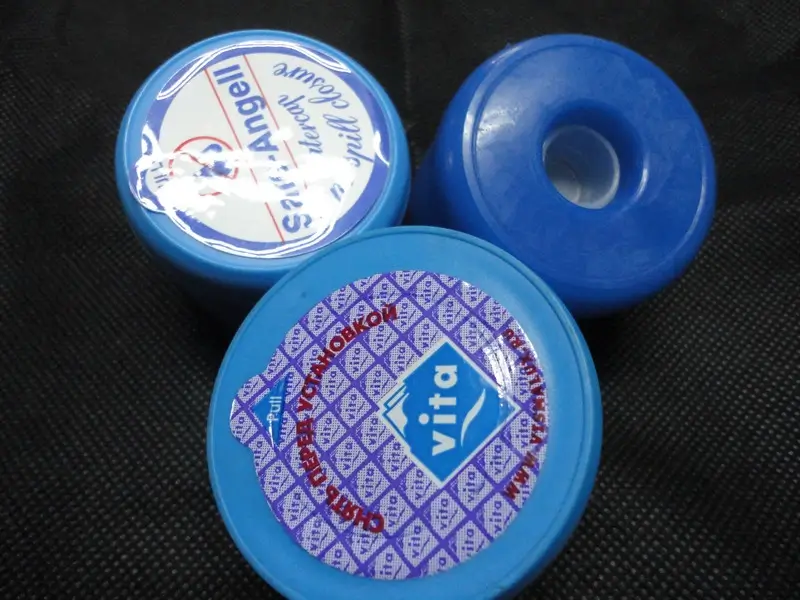

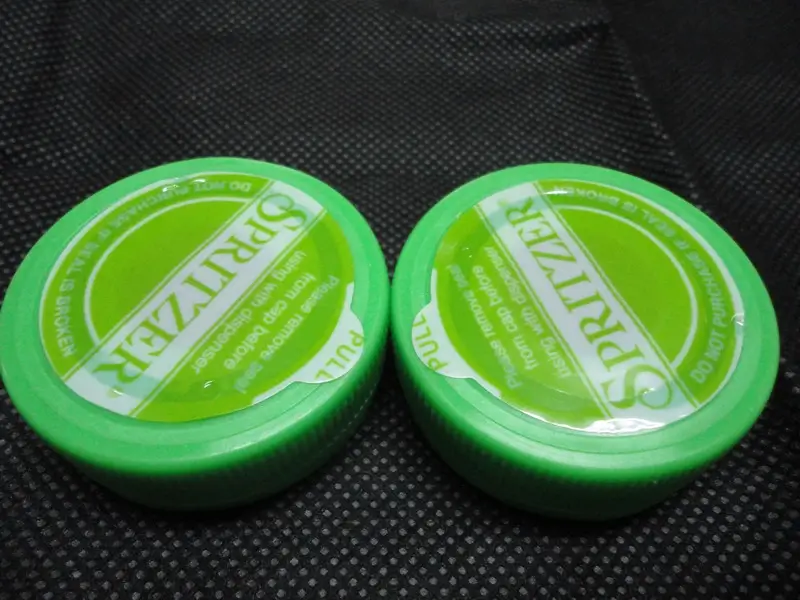

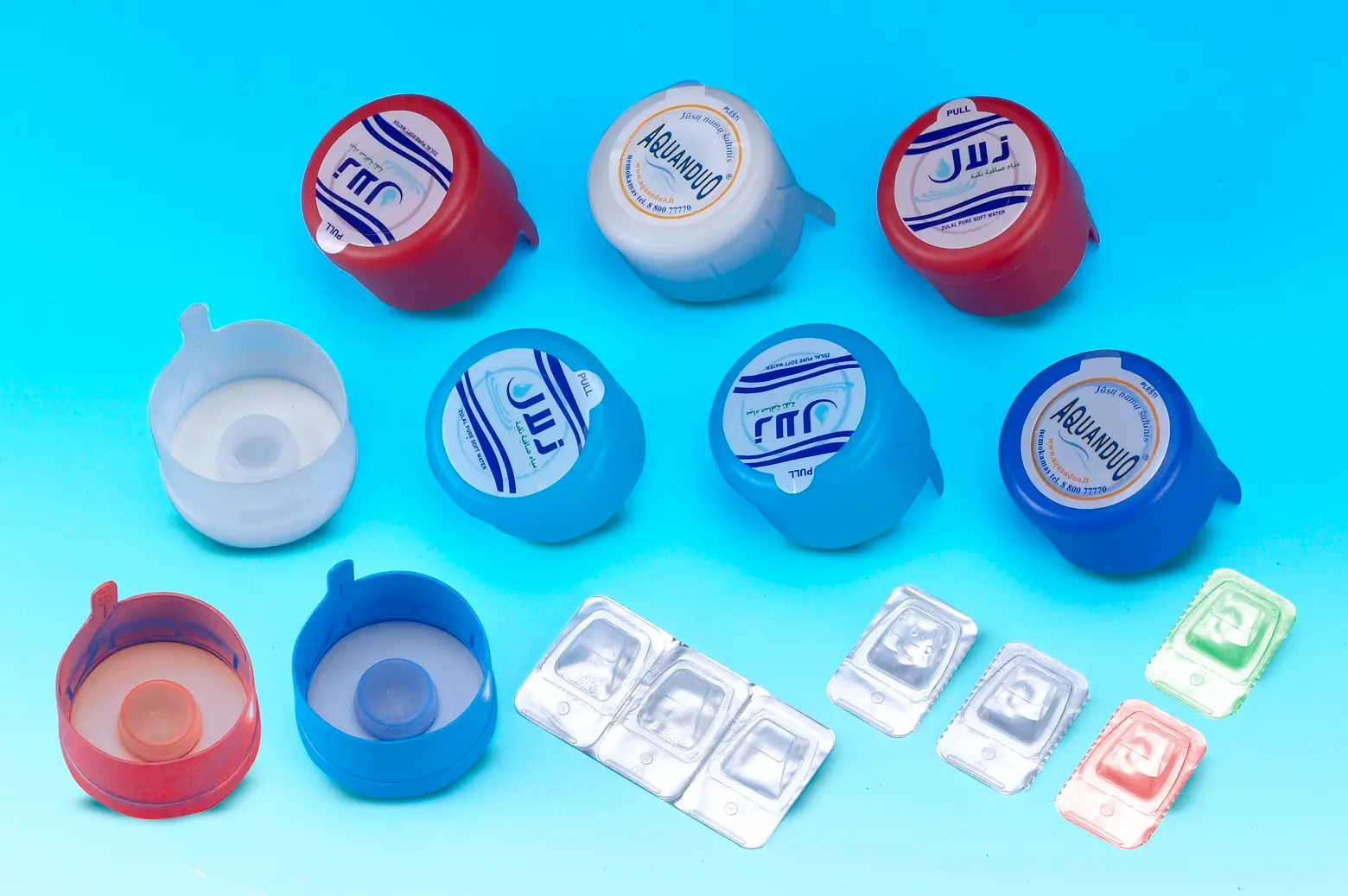

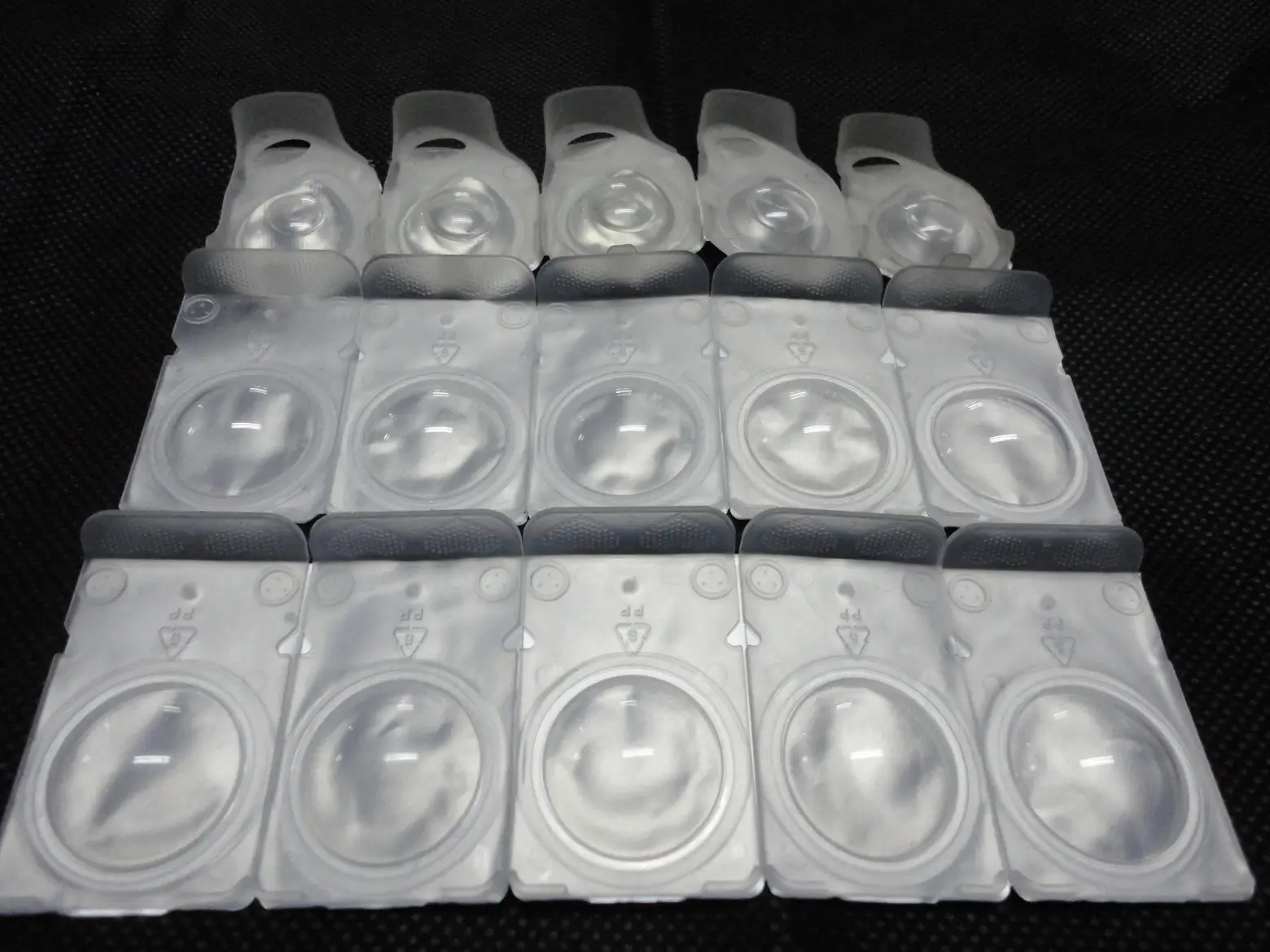

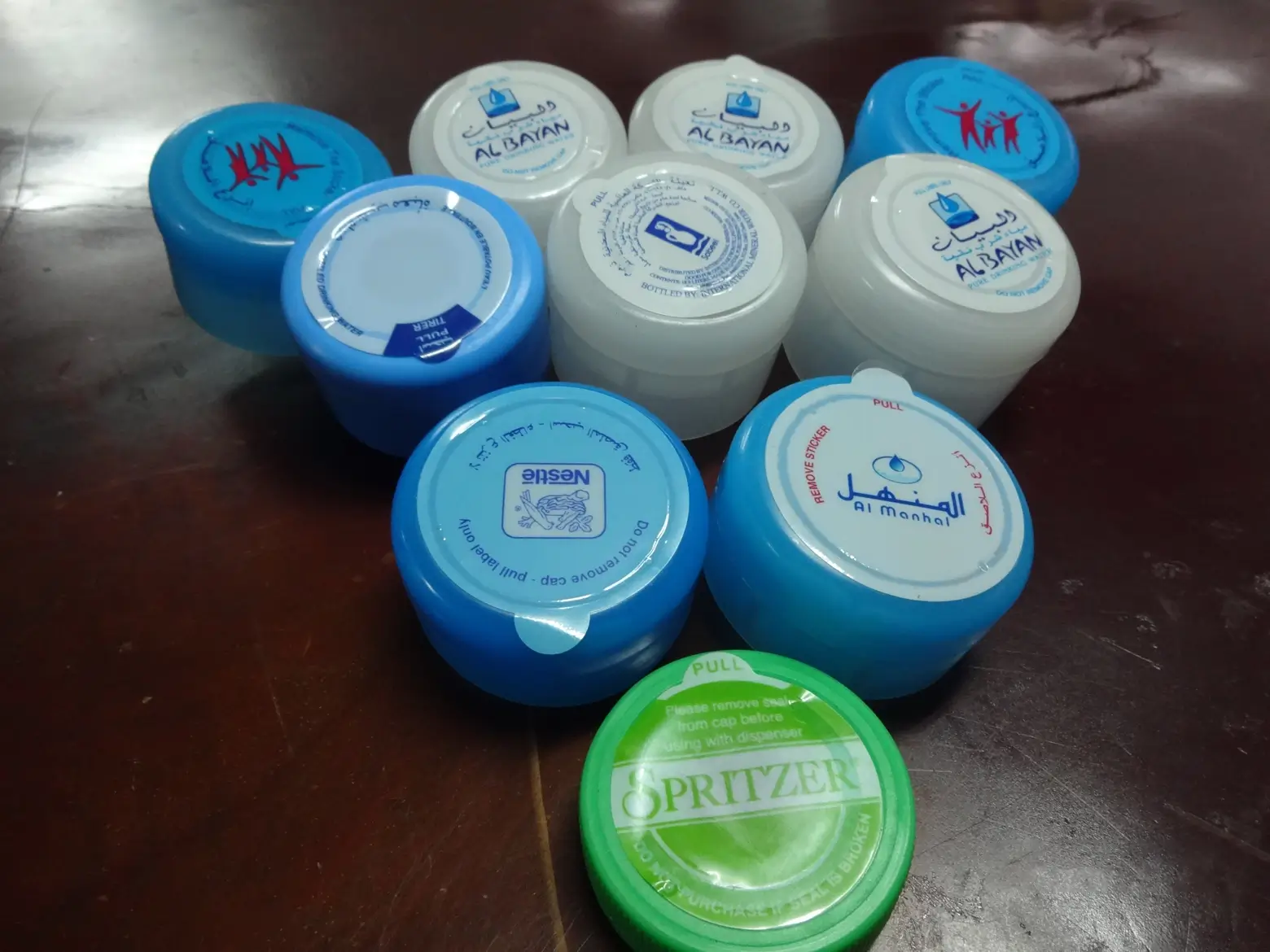

5 Gallon cap, contact lens.
SPECIFICATIONS
|
Model
Spec.
|
GST-1 | GST-2 | GST-4 |
|---|---|---|---|
| Packaging Speed (pcs/min) | 15-20 | 30-40 | 70-80 |
| Electric Power | AC 220-415V (Customizable by country) | ||
| Air Compressor | 3 HP-7.5 HP | ||
※ Note: The air compressor required for this machine must be provided by the customer.
Need sizing or a quotation?
Request a Quote
GST 5 Gallon Cap Sealing Machine
Share your material, pack format, and capacity target. The SAN TUNG team will help match the right machine configuration.
