AHM Horizontal Auto Packing Machine

Products Menu

Horizontal Weighing, Filling & Packaging Machine

AHM Horizontal Auto Packing Machine

AHM-1 / AHM-2

FEATURES

AHM is special high speed packing machine. It operates via full servo technologies and PLC microcomputer control with stable operation. Also, it is with mobile touchscreen interactive interface, which is easy to operate and with safely doors, which is easy to clean and maintain.
The machine is suitable for packing foodstuff, pharmaceuticals, pesticide and daily using chemicals, etc. Different filling methods can be used for different products, such as liquid, powder, granule. Additionally, it can be equipped with photoelectric cell device, printers, tear notch.

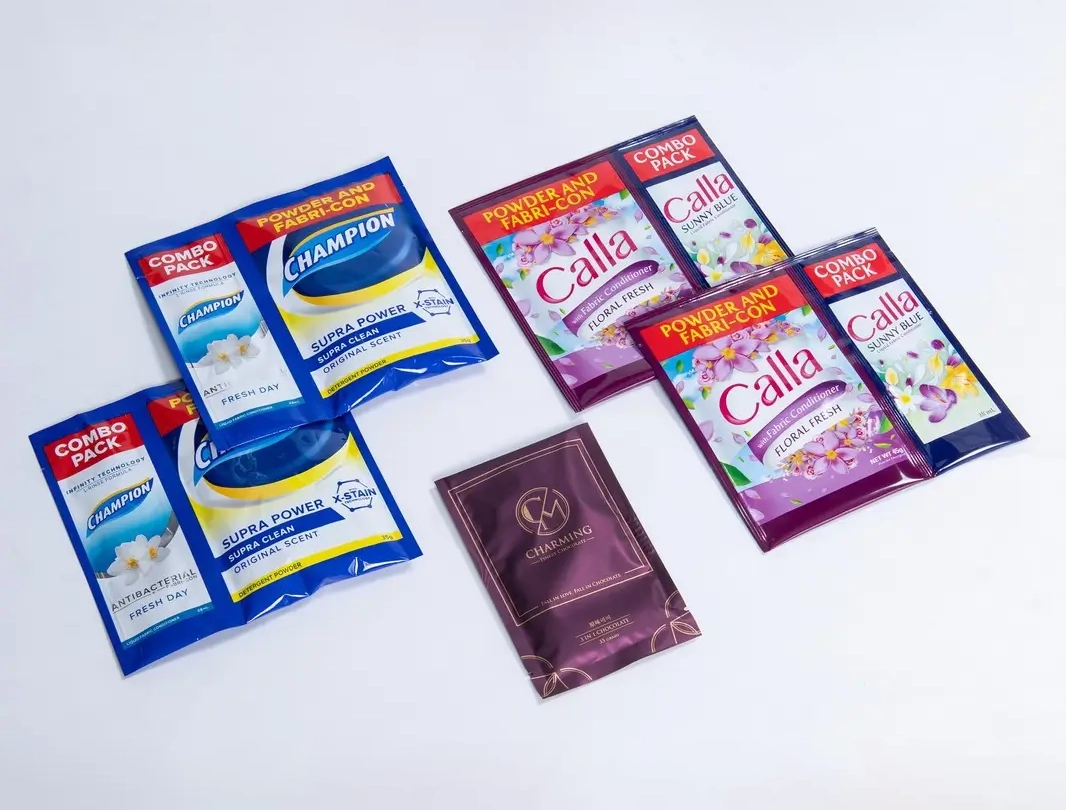

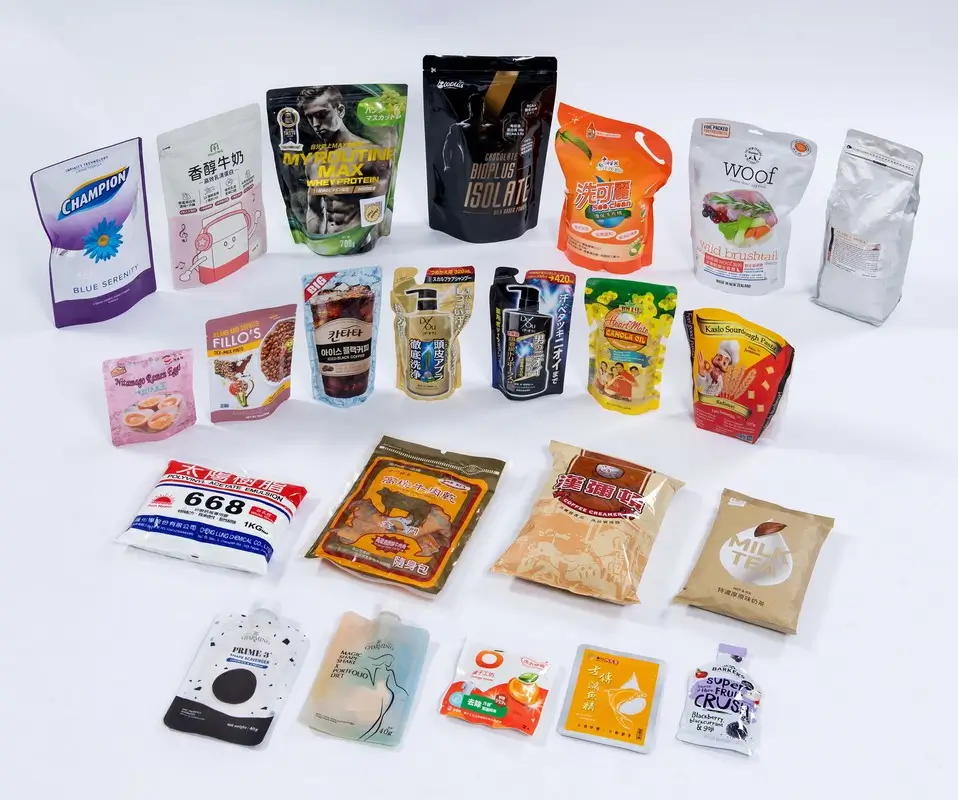

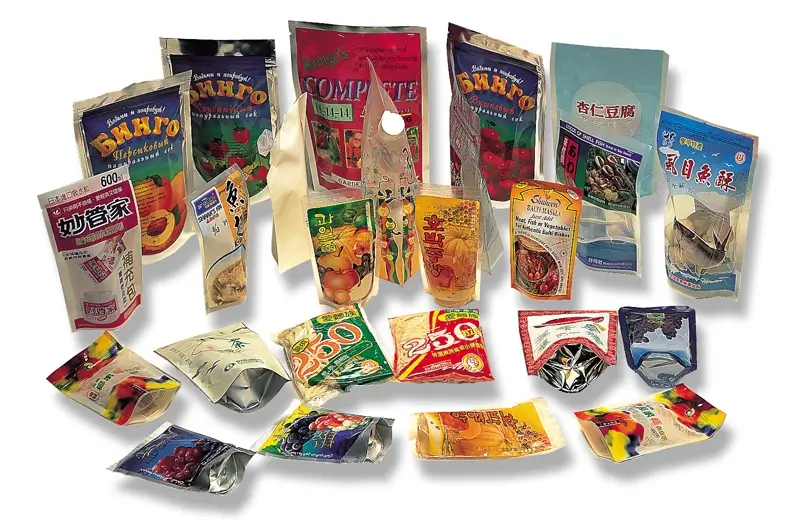

  • Packing type：three-side or four-side sealed sachets or stand-up pouches (doypack type).
  • Packaging：Available in Roll-fed / Pre-made Bag models.

APPLICATIONS

  • Food Industry: Liquid foods, condiments, biscuits, candies, sauces, etc.
  • Daily Chemical Products: Detergents, cosmetics, pesticides, laundry powders, softeners, etc.
  • Pharmaceutical & Health: Pharmaceuticals, supplements, health foods, etc.

OPTIONAL EQUIPMENT

1. Computerized Weighing Machine
2. Multihead Weigher
3. Auger filler
4. Filler for liquid or pasty product
5. Volumetric Cup Filler
6. Infeed Conveyor System

SPECIFICATIONS

Model Spec.
AHM-1 (Single bags) AHM-2 (Dual-link bags)
Filling Range 50-200ml 20-100ml
Packaging Speed(bags/min) 40-60 80-120
Packing Size W 80-100 mm × L 180-225 mm W (60+60) × L 70 mm
W (90+90) × L 220 mm
Electric Power 220/380V 5KW 220/380V 5KW
Machine Dimensions
L × W × H (mm)		 3200 × 1000 × 1600 3200 × 1000 × 1600

※ Note:  The air compressor required for this machine must be provided by the customer.
